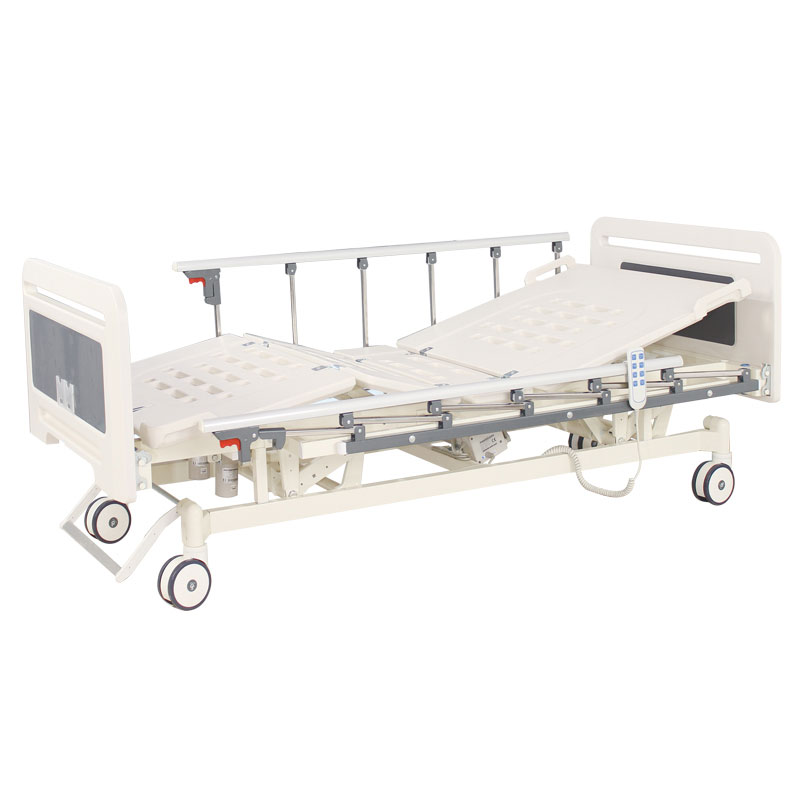

C01-5 Three Function Electric ICU Hospital Bed
1. Introduction:
C01-5 Three Function Electrical Hospital Bed is a medical bed specially designed for hospitalized patients or others in need of some form of health care.C01-5 Three Function Electrical Hospital Bed have special features both for the comfort and well-being of the patient and for the convenience of health care workers.
The features of C01-5 Three Function Electrical Hospital Bed include adjustable height for the entire bed, back rest, and knee rest, adjustable side rails, and electronic buttons to easy operate both the bed and other nearby electronic devices.
The C01-5 Three Function Electrical Hospital Bed are used not only in hospitals, but in other health care facilities and settings, such as nursing homes, assisted living facilities, outpatient clinics, and in home health care.
2. Parameters
| Model NO. | C01-5 Three Function Electric ICU Hospital Bed |
| Type | Electric Three Function |
| Function | backrest lifting, keen lifting, Hight adjustable, |
| Bed Frame | ABS |
| Head & Foot Board | ABS, Detachable, |
| Hand rail | 2 pcs, 6 bars, Aluminum Side Rails, Foldable |
| Caster & Locking | 125mm, Central Locking Brake System |
| Back lifting | 0-75° |
| Knee lifting | 0-25° |
| Hight adjust | 430-650mm |
| Weight Capacity | 260KGS |
| Overall Size | 2180*1060*430–650mm |
| Bed Surface Size | 1960*900mm |
| Warranty | 3 Years, Extra 1% Accessories |
| Optional | Mattress, Infusion Stand, Drainage hook, Rack, dining-table, cabinet |
3. Configuration
| linear motor | 3 pcs |
| Hand control unit | 1 pcs |
| Nurse control panel | 1 pcs (Optional) |
| Castors(125mm, Central brake) | 4 pcs |
| Side rails | 2 pcs |
| ABS head & foot board | 2 pcs |
| Mattress platform | 4 sections |
| IV pole | 1 pcs |
| Draniage hook | 2 pcs |
