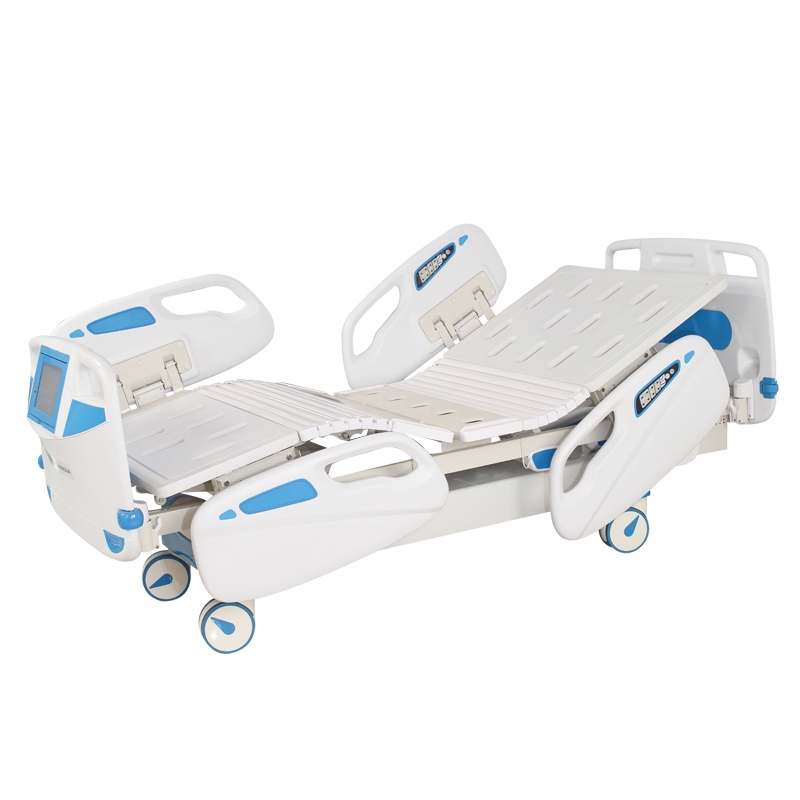

C10-7 Five function electrical ICU bed with weighing scale
1. Introduction:
Five function electrical ICU bed with weighing scale is a hospital bed specially designed for hospitalized patients or others in need of some form of health care. Five function electrical ICU bed with weighing scale have special features both for the comfort and well-being of the patient and for the convenience of health care workers.
The features of Five function electrical ICU bed with weighing scale include adjustable height for the entire bed, back rest, and knee rest, adjustable side rails, and electronic buttons to easy operate both the bed and other nearby electronic devices.
Five function electrical ICU bed with weighing scale are used not only in hospitals, but in other health care facilities and settings, such as nursing homes, assisted living facilities, outpatient clinics, and in home health care.
2. Parameters
| Model NO. | C10-7 |
| Type | Electric |
| Function | backrest lifting, keen lifting, Hight adjustable,Trendelenburg & Reverse Trendelenburg, CPR |
| Bed Frame | Steel tube with powder coating |
| Head & Foot Board | ABS, Detachable, embedded control penal |
| Hand rail | 4 pcs, ABS, Foldable, 2 pcs with embedded control penal |
| Caster & Locking | 125mm, Central Locking Brake System |
| Back lifting | 0-75° |
| Knee lifting | 0-25° |
| Trendelenburg & Reverse Trendelenburg | ±15° |
| Hight adjust | 430-650mm |
| Weight Capacity | 260KGS |
| Overall Size | 2180*1060*430–650mm |
| Bed Surface Size | 1960*900mm |
| Warranty | 3 Years, Extra 1% Accessories |
| Optional | Mattress, Infusion Stand, Drainage hook, Rack, dining-table, cabinet |
3. Configuration
| linear motor | 4 pcs |
| Hand control unit | 1 pcs |
| Nurse control panel | 1 pcs |
| Castors(125mm, Central brake) | 4 pcs |
| ABS side rails | 4 pcs |
| ABS head & foot board | 2 pcs |
| Mattress platform | 4 sections |
| IV pole | 1 pcs |
| Draniage hook | 2 pcs |
